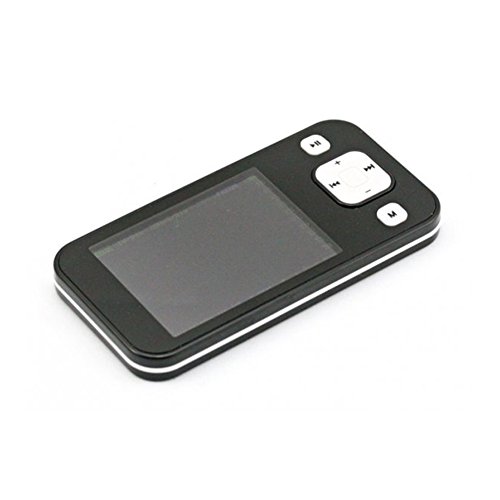

SainSmart Upgraded Mini Pocket-Sized Handheld Digital Storage Oscilloscope ARM DSO Nano DSO201
You buy SainSmart Upgraded Mini Pocket-Sized Handheld Digital Storage Oscilloscope ARM DSO Nano DSO201 with Coupon : KOPA will be discounted 10%
.
Why Use SainSmart Upgraded Mini Pocket-Sized Handheld Digital Storage Oscilloscope ARM DSO Nano DSO201 ?
Design rich colors to choose from Automotive diagnostic equipment is available at discount prices. Find excellent deals on a variety of diagnostics tools and testing equipment . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.SainSmart Upgraded Mini Pocket-Sized Handheld Digital Storage Oscilloscope ARM DSO Nano DSO201 will help your job easier dex
SainSmart DS0201 is a pocket size digital storage oscilloscope that fulfills basic electronic engineering requirements. It is based on ARMCortex-M3 compatible 32 bit platform, equipped with 320*240 color display, SD card capability, USB connection, and chargeable batteries. Portable Digital Oscilloscope DIY Kit provides waveform viewing, pocket size and over 2 hours battery operation. This DIY kit is OPEN SOURCE. The Schematic, PCB layout and program code is free for re-design. It is ideal for production test, research, design and education.
Specification
* Analog bandwidth: 0 - 1MHz
* Max sample rate: 1Msps 12Bits
* Sample memory depth: 4096 Point
* Horizontal sensitivity: 1uS/Div～10S/Div (1-2-5 Step)
* Horizontal position: adjustable with indicator
* Vertical sensitivity: 10mV/Div～10V/Div (with ×1 probe)&0.5V/Div～10V/Div (with ×10 probe)
* Vertical position: Adjustable with indicator
* Input impedance:>500KΩ
* Max input voltage: 80Vpp (by ×1 probe)
* Coupling: DC
* Trig modes: Auto, Norma, Single, None and Scan
Function
* Automatic measurement: frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage
* Precise vertical measurement with markers, Precise horizontal measurement with markers
* Trig level adjustable with indicator, Trig sensitivity adjustable with indicator
* Rising/falling edge trigger
SD Card Setup
1. Format SD card with FAT16.
2. Download Data file.
3. Decompress it and copy to the root folder of SD card.
Package List
1 x Oscilloscope
1 x Probe (x1/x10)
1 x Mini USB Cable
1 x Manual
1 x Flannel Bag
You buy SainSmart Upgraded Mini Pocket-Sized Handheld Digital Storage Oscilloscope ARM DSO Nano DSO201 with Coupon : KOPA will be discounted 10%
