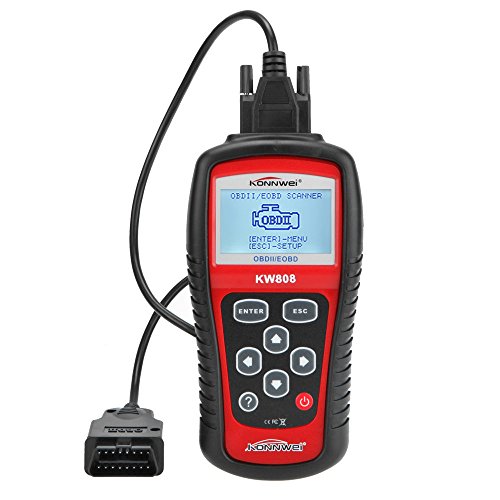

Konnwei KW808 OBDII/EOBD Code Reader Auto Code Scanner OBD2 Code Reader Check Engine
You buy Konnwei KW808 OBDII/EOBD Code Reader Auto Code Scanner OBD2 Code Reader Check Engine with Coupon : KOPA will be discounted 10%
.
Why Use Konnwei KW808 OBDII/EOBD Code Reader Auto Code Scanner OBD2 Code Reader Check Engine ?
Design rich colors to choose from Automotive diagnostic equipment is available at discount prices. Find excellent deals on a variety of diagnostics tools and testing equipment . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.Konnwei KW808 OBDII/EOBD Code Reader Auto Code Scanner OBD2 Code Reader Check Engine will help your job easier dexProduct Features
*Works on all 1996 & later OBDII compliant US, European & Asian vehicles.
*Easily determines the cause of the "Check Engine Light".
*Turns off Check Engine Light, clears codes & resets monitors.
*Displays DTC definitions onscreen.
*Views freeze frame data.
*Displays monitor & I/M readiness status (emissions).
*Identifies pending codes.
*Reads live PCM data stream.
*Displays live O2 sensor test data.
*Graphs data §C(1996 and newer).
*Memory/battery backup for off-vehicle data review & analysis.
*Bilingual interface & definitionsa English/Spanish.
*Performs modules present test.
*Retrieves vehicle information (VIN, CID and CVN).
*Supports CAN (Controller Area Network) & all other current OBD2 protocols.
*Large easy-to-read backlit LCD screen.
*Software upgradeable via internet.
*Prints data via PC.
Supported Protocols
ISO 15765-4 CAN ( 29 bit ID, 250 kbaud)
ISO 15765-4 CAN ( 11 bit ID, 250 kbaud)
ISO 15765-4 CAN ( 29 bit ID, 500 kbaud)
ISO 15765-4 CAN ( 11 bit ID, 500 kbaud)
ISO 14230-4 KWP 2000 ( fast init, 10.4 kbaud)
ISO 14230-4 KWP 2000 ( 5 baud init, 10.4 kbaud)
ISO 9141-2 ( 5 baud init, 10.4 kbaud)
SAE J1850 VPW ( 10.4 kbaud)
SAE J1850 PWM ( 41.6 kbaud)
Specification
Display: Backlit, 128x64 pixel display with contrast adjustment.
Operating Temperature: 0 to 60℃( 32 to 140℉).
Storage Temperature: -20 to 70℃( -4 to 158℉).
External Power: 8.0 to 18.0 V power provided via vehicle battery.
Internal Battery: 9 V cell battery.
Dimensions:178*95*35mm(7.00 x 3.74 x 1.38inch).
OBD II Cable Length:136cm(4.45ft).
Weight:649g(22.89oz).
Package Included
1 x Main unit of Code Scanner.
1 x 4.45ft OBD II cable.
1 x User's Manual.
1 x Carrying Bag.
1 x CD.
