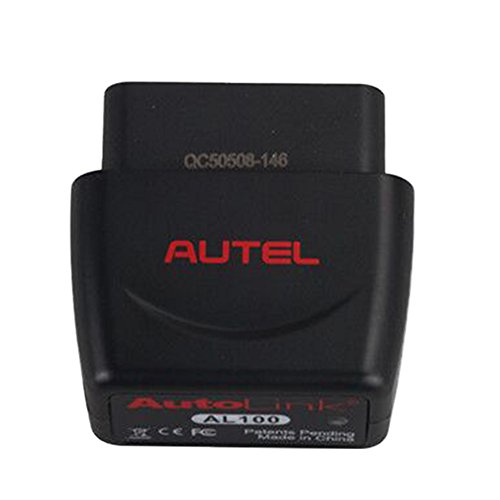

Autel Autolink AL100 DIY Bluetooth OBDII/EOBD Scanner
You buy Autel Autolink AL100 DIY Bluetooth OBDII/EOBD Scanner with Coupon : KOPA will be discounted 10%
.
Why Use Autel Autolink AL100 DIY Bluetooth OBDII/EOBD Scanner ?
Design rich colors to choose from Automotive diagnostic equipment is available at discount prices. Find excellent deals on a variety of diagnostics tools and testing equipment . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.Autel Autolink AL100 DIY Bluetooth OBDII/EOBD Scanner will help your job easier dexThe AutoLink AL100 OBDII/EOBD Scanner Easy access to vehicle diagnostics Supports all 10 modes of OBDII test for a complete and fast diagnosis Thousands of troubleshooter code tips, which is truly time-saving ideal for DIYers and professional technicians. Support Bluetooth connection between laptop/pad and device.
Autolink AL100 Set Up:
Work on all 1996 and newer vehicles.
1. CONNECT AL100 TO YOUR VEHICLE
Connect your AL100 vehicle adapter to the OBD II Data Link Connector under the dashboard.
Turn the ignition ON with engine OFF.
The LED on the adapter will illuminate red light.
2. TURN ON BLUETOOTH
Ensure to turn on Bluetooth to enable communication with your AL100 vehicle adapter.
Go to Settings > Bluetooth and set to ON.
Make sure your mobile or pad is turned on and in range.
3. PAIR UP
Find your AL100 on the list of discovered Bluetooth devices.
Tap on AL100-XXXXXXXX to pair up.
When connection is successful, the LED on the adapter will illuminate blue light.
4. Ready...
Once connection is made, push the home button and tap on the AL100 icon to restart the app.
Specifications:
Operating Voltage: DC + 12V
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Average Operating Current: ≤50mA
Wireless Working Range: 2 meters
Maximum Transmission Power: 4 dBm
Dimensions: (50 * 50 * 25)mm
Weight: (0.19±0.05) kg
Protocols: ISO15765-4 (CAN); ISO14230-4 (KWP2000) ISO9141-2 ; J1850 VPW; J1850 PWM
Operating System: IOS
Package including:
1pc x AL100 Scanner
You buy Autel Autolink AL100 DIY Bluetooth OBDII/EOBD Scanner with Coupon : KOPA will be discounted 10%
