Fluke 355 True RMS Clamp-Meter, 2,000A AC/DC, Conductors to 58mm, Voltage, Frequency, and Resistance Measurement
You buy Fluke 355 True RMS Clamp-Meter, 2,000A AC/DC, Conductors to 58mm, Voltage, Frequency, and Resistance Measurement with Coupon : KOPA will be discounted 10%
.
Why Use Fluke 355 True RMS Clamp-Meter, 2,000A AC/DC, Conductors to 58mm, Voltage, Frequency, and Resistance Measurement ?
Design rich colors to choose from Automotive diagnostic equipment is available at discount prices. Find excellent deals on a variety of diagnostics tools and testing equipment . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.Fluke 355 True RMS Clamp-Meter, 2,000A AC/DC, Conductors to 58mm, Voltage, Frequency, and Resistance Measurement will help your job easier dex

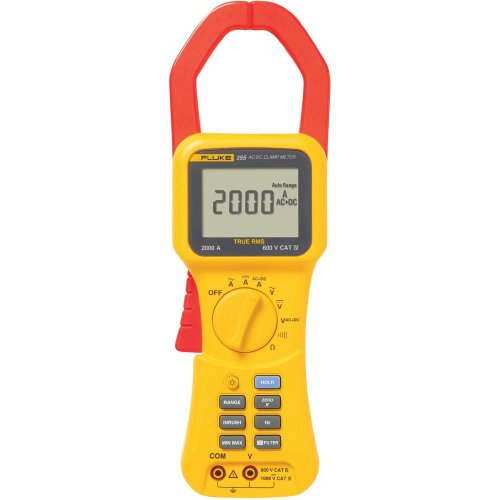

The Fluke 355 digital clamp-meter is a true RMS sensing, auto-ranging multimeter for measuring current, voltage, frequency, and resistance in electrical testing applications. It has a clamp that measures AC (alternating current) and DC (direct current) to 2,000A (amperes) (1,400A AC RMS). The clamp has two jaws that can close around an electrical conductor up to 58mm (2.3 inches) in diameter to measure the current of large or multiple conductors without touching or interrupting the circuit. A set of test leads is included for measuring AC voltage to 600V, DC voltage to 1,000V, frequency to 1kHz (kilohertz), and resistance to 400kΩ (kilohms). The test leads are silicone-insulated for flexibility and resistance to heat and cold. The meter has a rotary switch to select the property to measure, and an LCD with a backlight for visibility in low light that turns off automatically after five minutes.
The meter's inrush current function analyzes the surge current at the startup of motors and other inductive loads to provide accurate, stable measurements. It features a low-pass filter that reduces high-frequency interference to allow accurate measurements of complex wave shapes. The minimum/maximum function toggles to display the lowest, highest, and average readings. To aid documentation of readings and capture readings in tight spaces, the data hold function keeps the reading on the display after disconnecting from the circuit. A continuity buzzer confirms that the circuit conducts electricity. The unit operates on six 1.5V AA batteries, and turns off automatically after 20 minutes of non-use to conserve battery life. It has a low-battery indicator that signals when the battery needs to be replaced.
This true RMS (root mean square) sensing meter provides accurate readings when measuring linear or non-linear loads, regardless of waveform. It is auto-ranging, so it automatically selects the appropriate operating range for the property being measured. Accuracy and resolution specifications vary according to the range being measured. The meter meets IEC (International Electrotechnical Commission) safety standard 61010-2-032, and is rated for CAT (category) IV installations to 600V, which covers equipment at the origin of the installation, such as electricity meters and primary over-current protection equipment, and CAT III installations to 1,000V, which covers equipment in fixed installations, such as switches in the fixed installation and some industrial equipment that is permanently connected to the fixed installation. It comes with a soft carrying case.
Specifications
| Maximum AC (alternating current) input | 2,000A(1,400A RMS) |
| Maximum DC (direct current) input | 2,000A |
| Maximum AC voltage input | 600V |
| Maximum DC voltage input | 1,000V |
| Maximum frequency detected | 1kHz |
| Maximum resistance detected | 400kΩ |
| Installation rating | CAT IV, 600V; CAT III, 1,000V |
| Standards met | IEC safety standard 61010-2-032; CE marking; CSA; Australia N10140 |
| Power supply | (6) 1.5V AA batteries |
| Weight | 0.814kg/1.8lb. |
| Dimensions (H x W x D) | 300 x 98 x 52mm/12 x 3.75 x 2 inches |
H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Clamp-meters, also called clamp-on meters, have two jaws that fit around a conductor to measure electrical current without cutting through wires, or touching or interrupting the electrical circuit. Available in handheld or benchtop models, clamp-meters diagnose problems in electrical equipment, wiring, and power supplies. All clamp-meters test for current. Some come with test leads and inputs for measuring voltage, capacitance, and resistance. They display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltage. Safety ratings are based on International Electrotechnical Commission (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.
Fluke Corporation manufactures electrical testing tools and software for industrial and commercial applications. The company, founded in 1948, is headquartered in Everett, WA.
What's in the Box?
- Fluke 355 digital clamp-meter
- Test lead set
- Test probe set
- Alligator clip set
- (6) AA batteries
- Soft carrying case
- User manual
