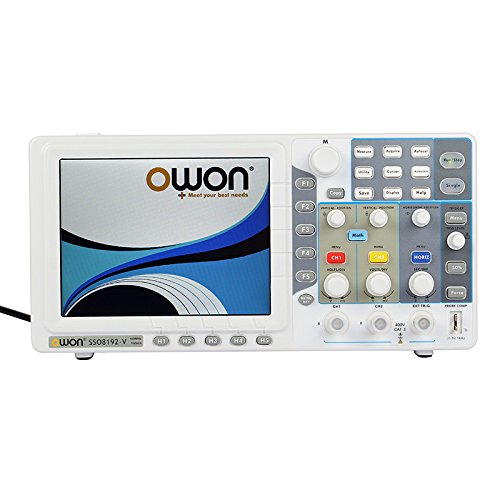

Owon SSO8192V 100Mhz 1G/s 8" LCD Display 1M Depth Memory VGA Port Oscilloscope
You buy Owon SSO8192V 100Mhz 1G/s 8" LCD Display 1M Depth Memory VGA Port Oscilloscope with Coupon : KOPA will be discounted 10%
.
Why Use Owon SSO8192V 100Mhz 1G/s 8" LCD Display 1M Depth Memory VGA Port Oscilloscope ?
Design rich colors to choose from Automotive diagnostic equipment is available at discount prices. Find excellent deals on a variety of diagnostics tools and testing equipment . This pallet flag provides a twist on the usual flag design by replacing the blue field of stars with a cutout map of the United States with a string art star! Perfect for the 4th of July, this pallet flag will bring flea market style to your patriotic celebration!.Owon SSO8192V 100Mhz 1G/s 8" LCD Display 1M Depth Memory VGA Port Oscilloscope will help your job easier dexOverview :
The SSO8192 is a 2 channel Digital Storage Oscilloscope with 100MHz bandwidth, 1GS/s sample rate, and 8 inches (800x600) color TFT-LCD screen and AutoScale function to simplify the operation.
More feature:
Model : SSO8192
Bandwidth: 100MHz
Horizontal?Scale(s/div) : 2ns/div - 100s/div,step by 1-2-5
Rise Time (at input,typical) : ≤11ns
Channel : 2+1(external)
Display : 8" color LCD, TFT display , 800 × 600 pixels, 65535 colors
Input Impedance ： 1MΩ ± 2%, in parallel with 15pF±5pF
Channel Isolation ：50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage ：400V (PK - PK) (DC+AC, PK - PK)
DC Gain Accuracy ： ±3%
Record Length ：1M
DC Accuracy?(average) ：Average≥16：±(3% reading + 0.05 div) for △V
Probe Attenuation?Factor ：1X, 10X, 100X, 1000X
LF Respond (AC,-3dB) ： ≥5Hz (at input, AC coupling, -3dB)
Sample Rate/Relay Time?Accuracy ：±100ppm
Interpolation ： sin (x) / x
Interval(△T) Accuracy (full?bandwidth) ：Single : ±(1 interval time + 100ppm × reading + 0.6ns), Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns)
Input Coupling ：DC, AC , and GND
Vertical Resolution (A/D) : 8 bits resolution (2 Channels simultaneously)
Vertical Sensitivity ： 2mV/div～10V/div (at input)
Trigger Type : Edge, Pulse, Video, Slope, Alternate
Trigger Mode : Auto, Normal, Single
Package List:
1 x owon SSO8192 oscilloscope
1 x 2 units of 100Mhz probes;
1 x Power cord;
1 x Driver CD;
1 x USB cable;
1 x 1x Probe Adjust Pen
1 x English Manual
1 x Portable bag original from OWON (Optional, can be added by paying more)
